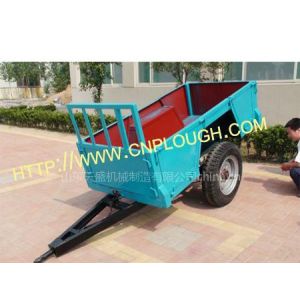

7C系列农用拖车是按***生产，主要适用于农业田间运输作业。它主要分为自卸车型和非自卸车型两大类型，其中自卸车型还可分为后卸式和侧卸式两种车型。该车具有质量可靠，承载能力强，使用维护方便等特点。同时还可根据客户要求进行定做。
It is producted in accordance with national standards ,it is suitable for transporting in the farm land.this series trailer is mainly divided into two types:self-dischsrging and non-self discharging, and self-discharging type may also consists of two kinds of vehicle types:rear-unloading and the side-unloading. The machine has dependable quality and strong bearing capacity,and easy to be mainained.we also produce other type of trailer according to the customer’s request.
|
model |
unit |
7C-1.5 7CX-1.5 |
7C-2 7CX-2 |
7C-2.5 7CX-2.5 |
7C-3 7CX-3 |
7C-4 7CX-4 |
|
name |
Trailer Tipping trailer |
Trailer Tipping trailer |
Trailer Tipping trailer |
Trailer Tipping trailer |
Trailer Tipping trailer |
Trailer Tipping trailer |
|
Matched power |
hp |
15 |
20 |
25 |
25-30 |
30-40 |
|
Box size |
m |
2*1*0.45 |
2.2*1.2*0.45 |
2.5*1.5*0.5 |
2.6*1.6*0.55 |
2.8*1.6*0.55 |
|
Loading weight |
kg |
1500 |
2000 |
2500 |
3000 |
4000 |
|
tyre |
|
650-16 |
650-16 |
650-16 |
750-16 |
825-16 |
|
brake |
|
Machinery brake |
Machinery brake |
Machinery brake |
Machinery brake |
Machinery brake |
|
linkage |
|
trailed |
trailed |
trailed |
trailed |
trailed |
